3.3 Recognise map symbols
Use these illustrated examples to identify selected operational and reference features on the Ok2Fly map.
WARNING
Map styling is supporting context, not an operational clearance or a complete aviation legend. Confirm the selected flight time, open the object details, review the complete flight-check result and check current official information before operating.
Recognise airfield envelopes

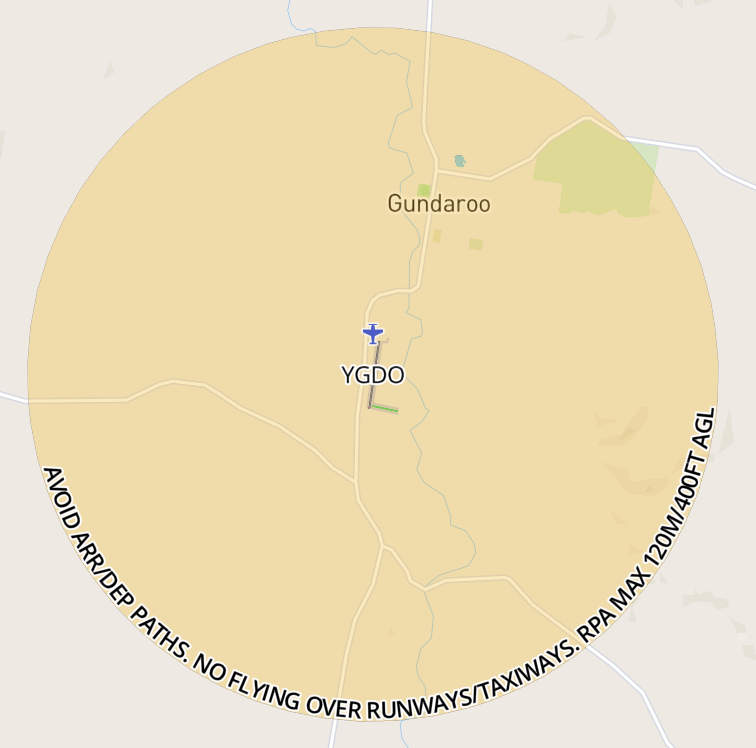

An uncontrolled airfield envelope extends three nautical miles from the airport reference point, or from the runway ends where that data is available.
Android and Apple and Web

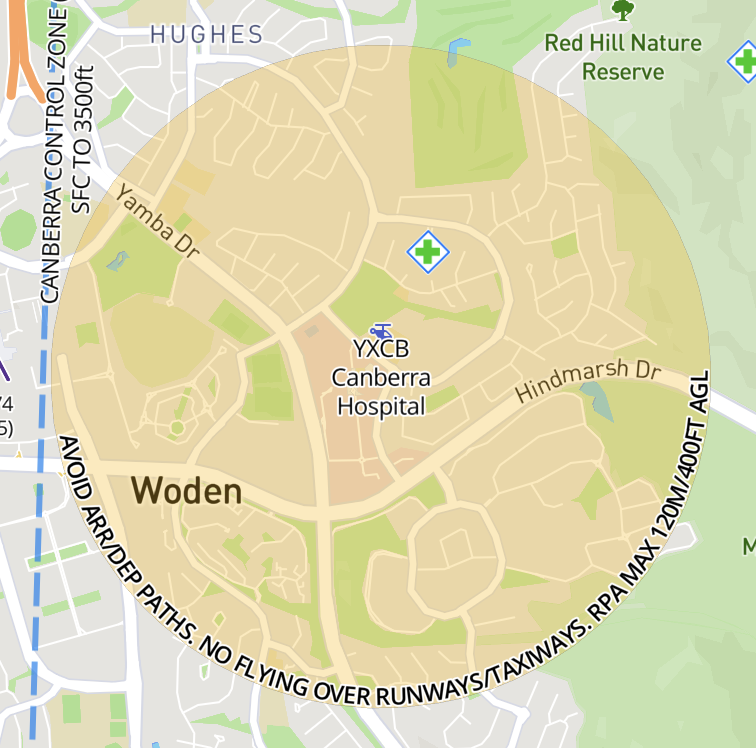

A heliport envelope extends 0.75 nautical miles from the heliport reference point.
Android and Apple and Web

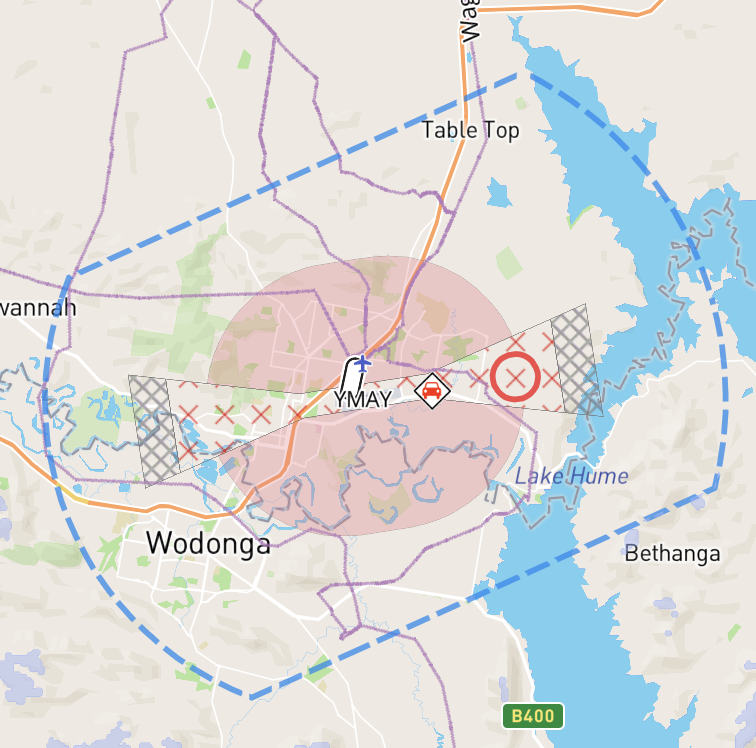

A controlled airfield envelope extends three nautical miles from the runway ends. Its presentation can depend on the selected pilot type.
Android and Apple and Web
Recognise runway splays

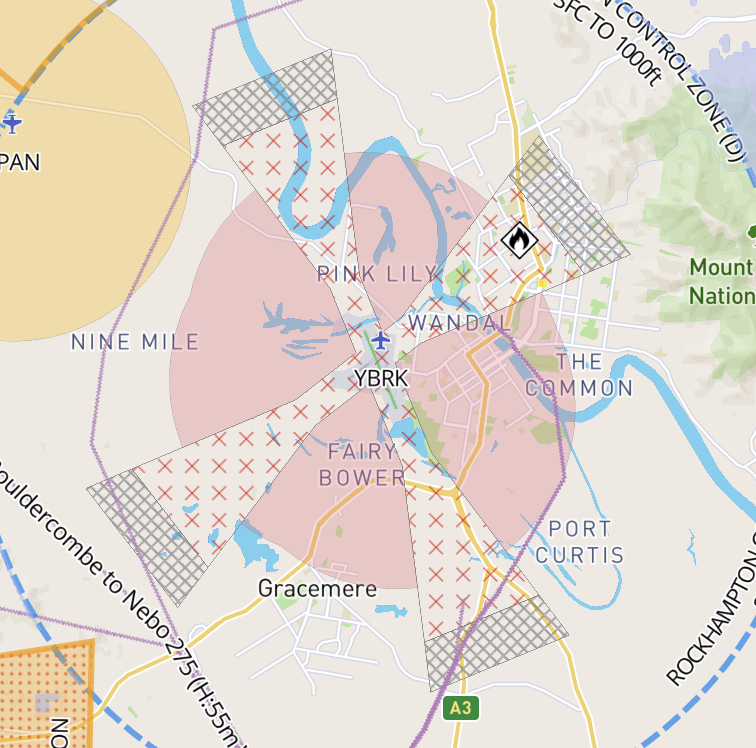

A runway splay identifies an approach and departure area relative to a runway end. Red cross-hatching identifies a no-fly area. Black cross-hatching identifies an area with a 300-foot or 91-metre height limit.
Android and Apple and Web
Recognise restricted airspace

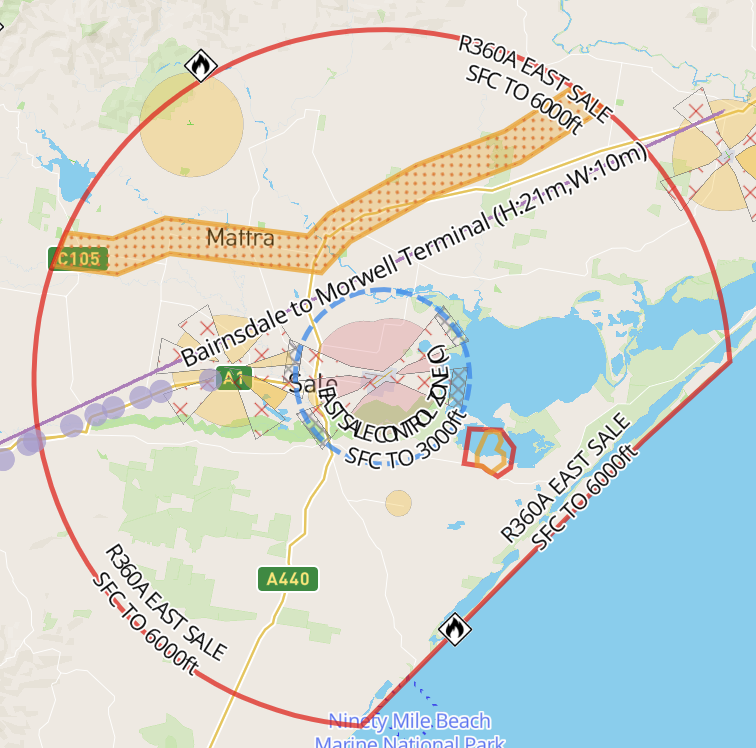

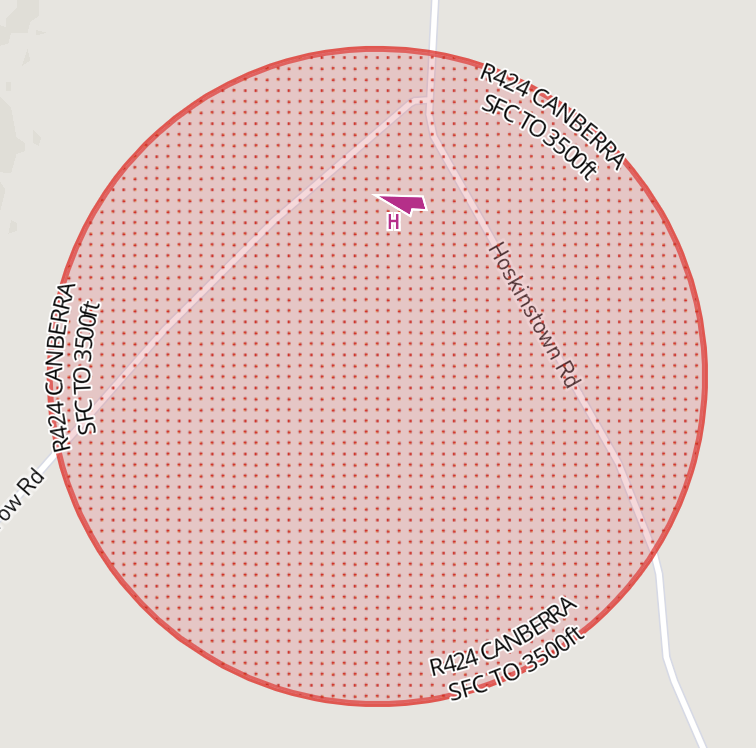

Inactive restricted airspace uses a red outline. When active for the selected flight time, it uses a red border and dotted fill.
Android and Apple and Web
Android and Apple and Web
Recognise danger areas

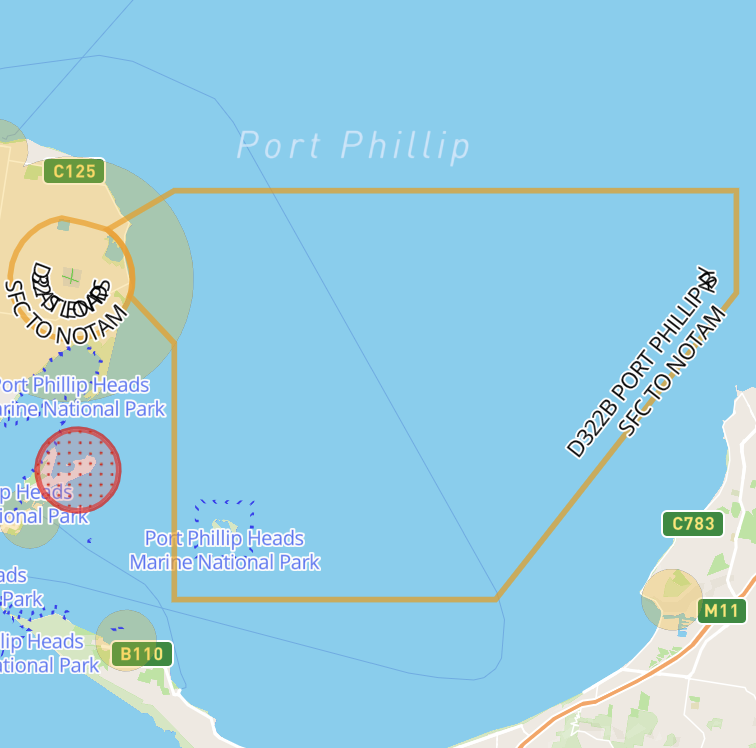

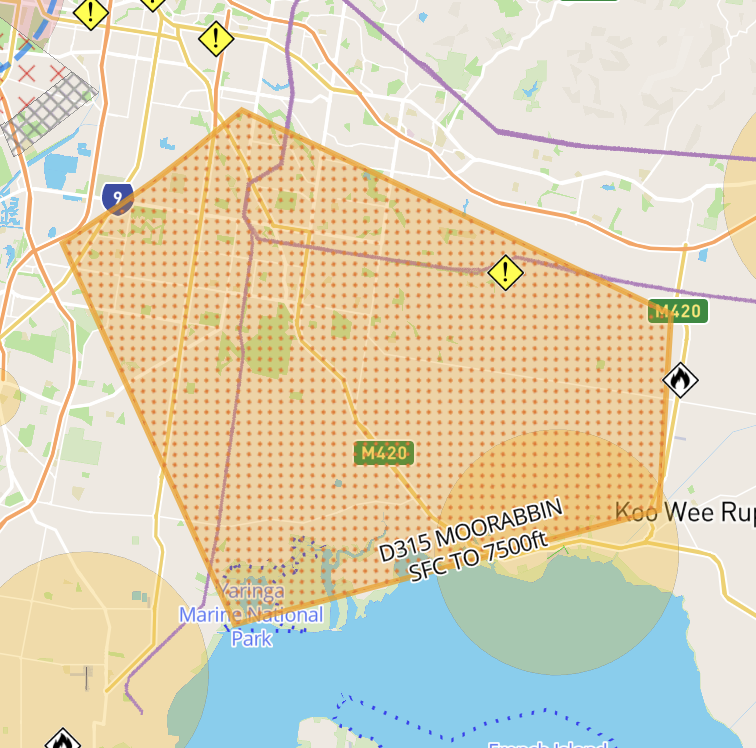

Inactive danger areas use an orange outline. When active for the selected flight time, they use an orange border and dotted fill.
Android and Apple and Web
Android and Apple and Web
Recognise NOTAM areas

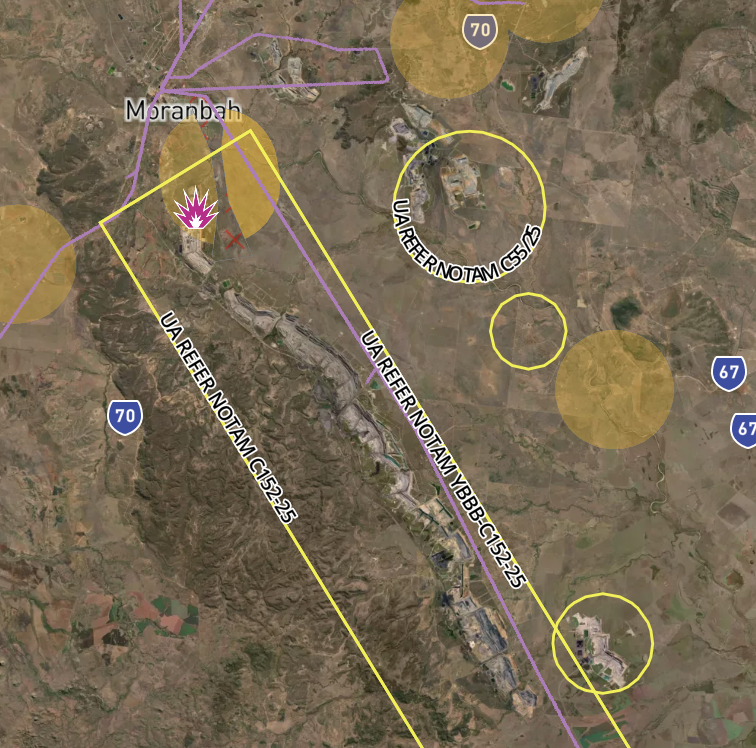

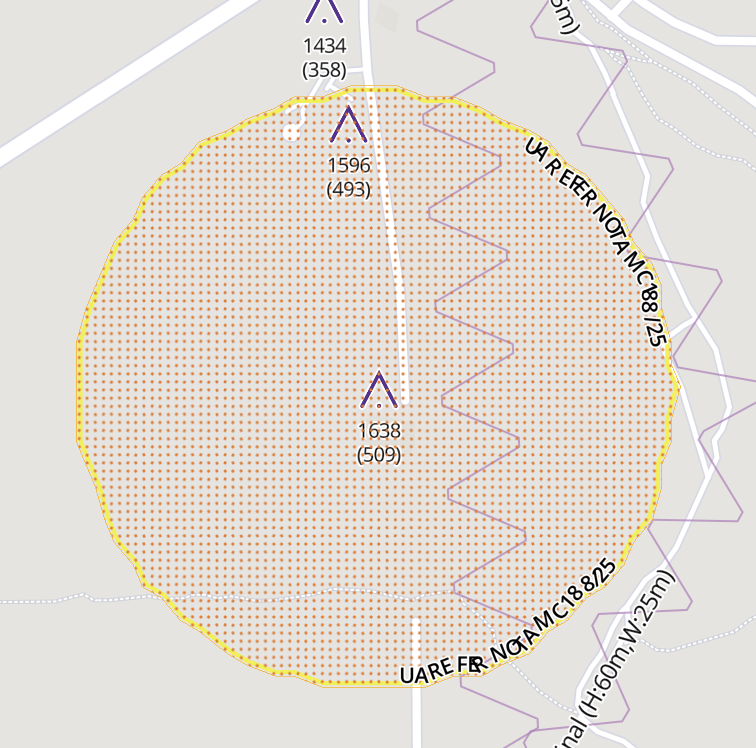

Ok2Fly can depict supported NOTAMs that define an area of activity, including UA, low-level-route and fireworks notices. An inactive NOTAM area uses a bright-yellow outline. When active for the selected flight time, it adds a red dotted fill. NOTAM timing can also affect whether restricted airspace or a danger area is shown as active.
Android and Apple and Web
Android and Apple and Web
Recognise infrastructure and activity

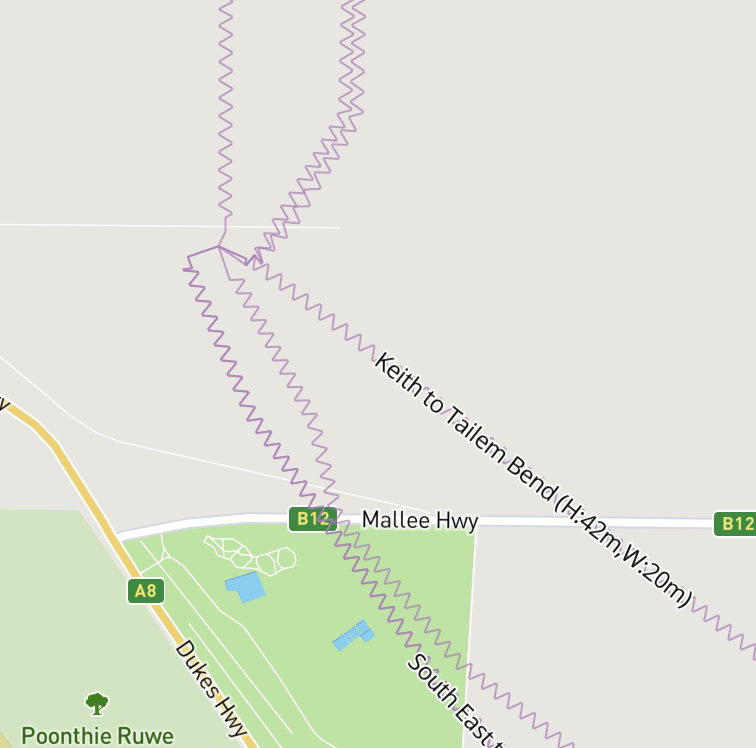

Purple zigzag lines follow high-voltage powerline routes. At higher zoom levels, the map can add route labels and approximate dimensions.
Android and Apple and Web

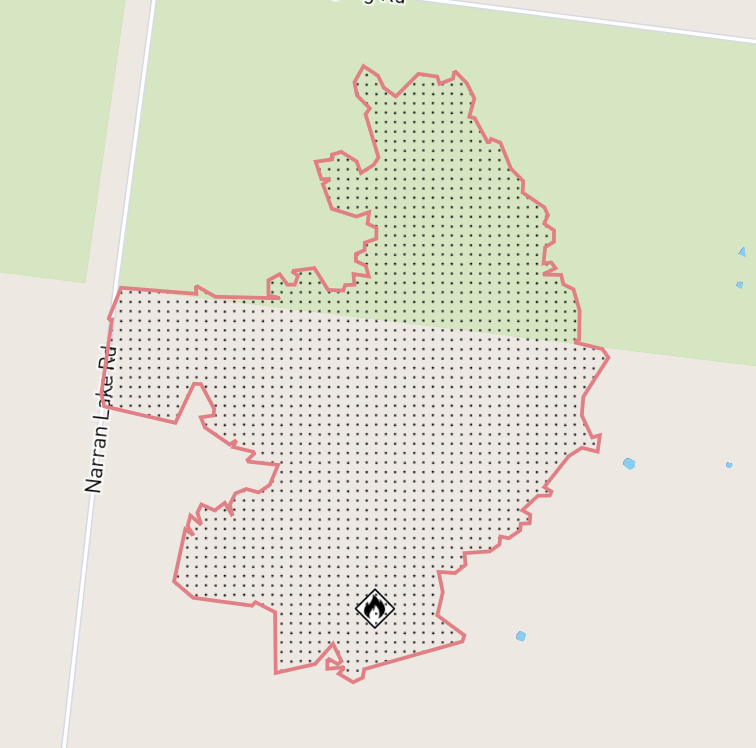

Emergency-services activity can use an icon for fire, ambulance, rescue or unknown activity. Where an affected area is available, the map can also show an outline and fill.
Android and Apple and Web

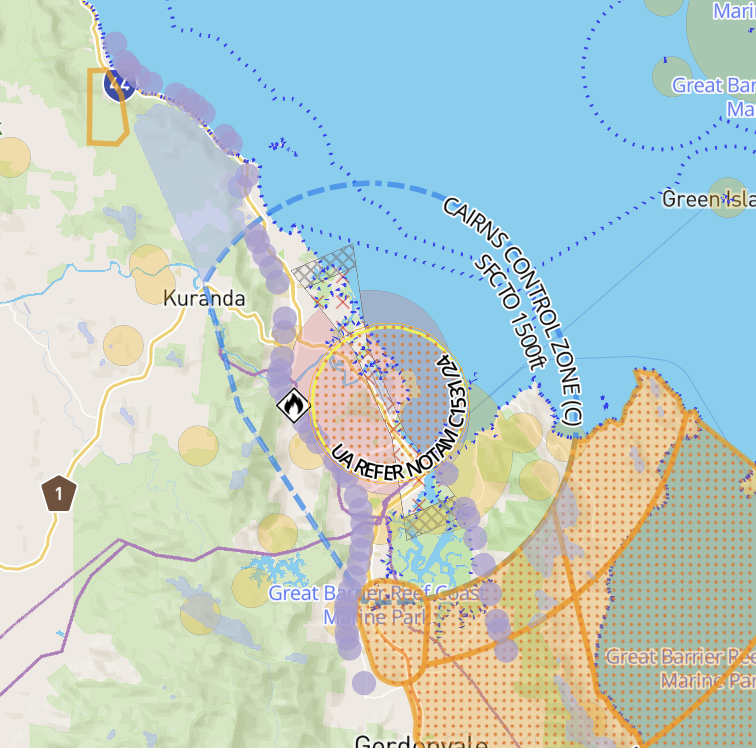

Violet dots trace a published visual-flight-rules scenic route.
Android and Apple and Web
Recognise an automated-authorisation grid

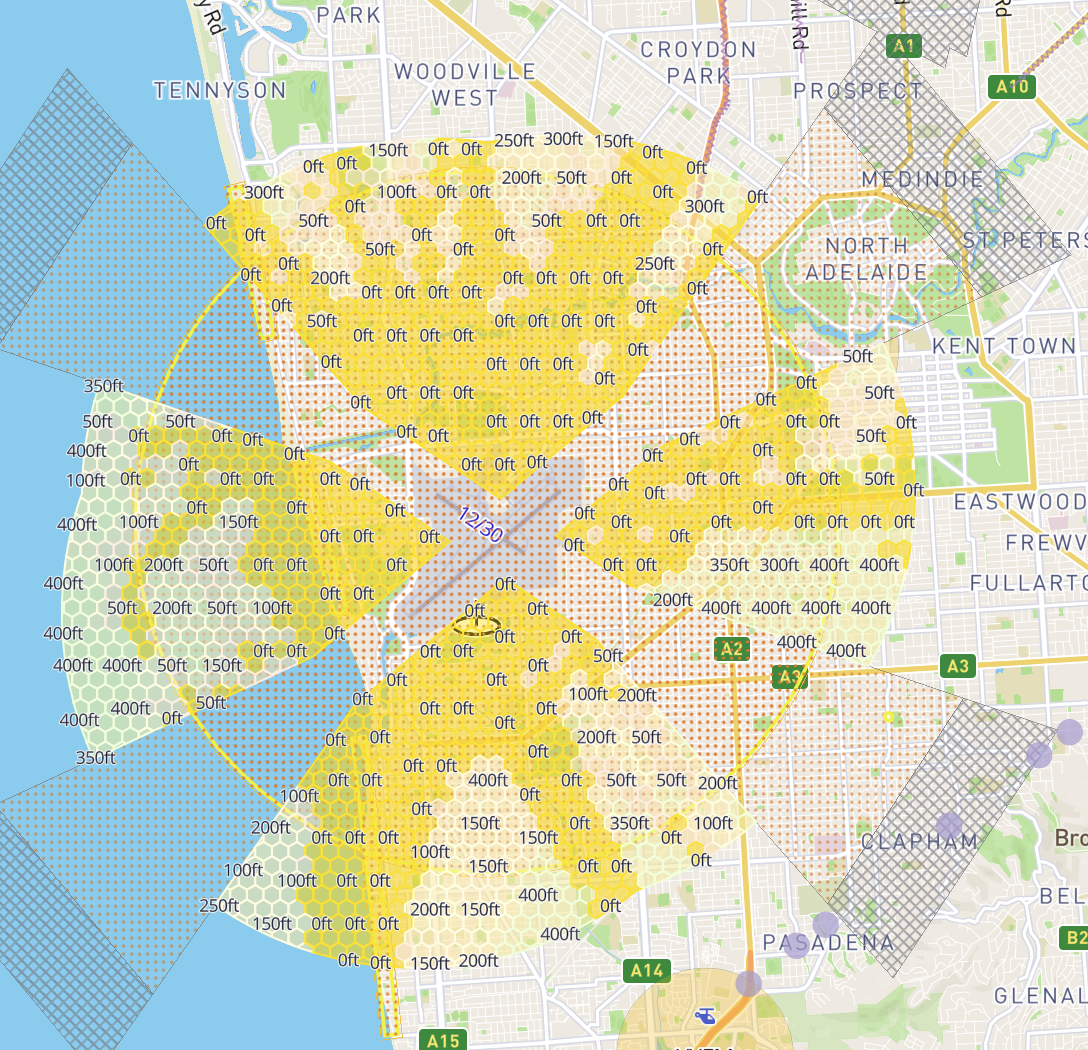

Eligible users can see hexagonal automated-authorisation cells in supported areas. Each cell shows the maximum altitude available for an automated request at that location.
Android and Apple and Web
The displayed value does not itself authorise an operation. See Airspace authorisations to prepare and submit an eligible request.
