4.2 Display aerodrome charts

To open an available chart or plate for the current aerodrome:

Press MAP to show the map options.

Dynon SkyView

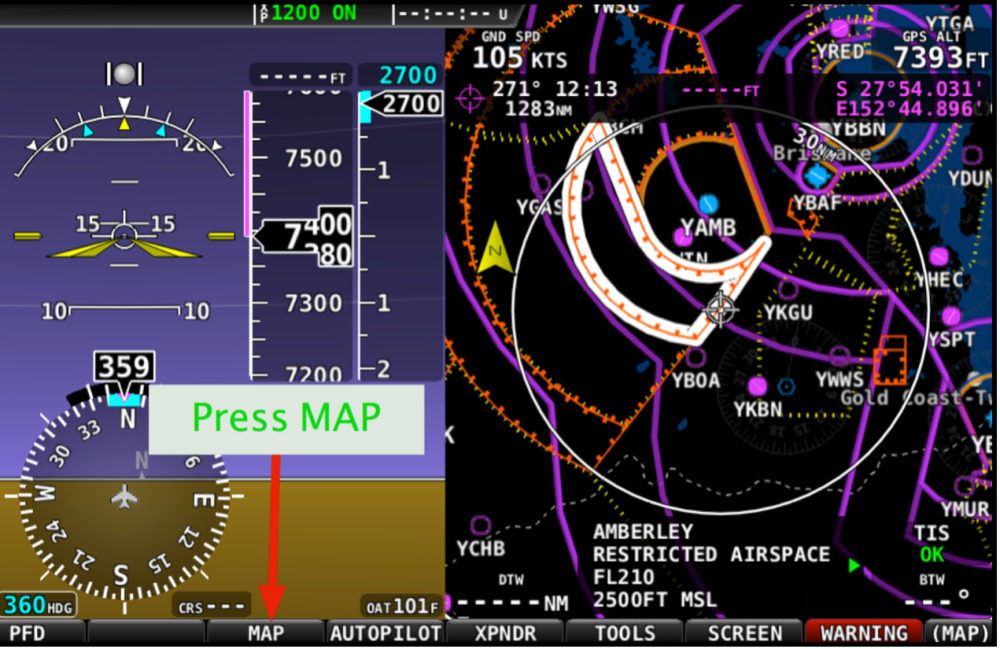

Map options opened on a Dynon SkyView display — Map options

Press FPL, followed by INFO, or press INFO directly from the map display.

Dynon SkyView

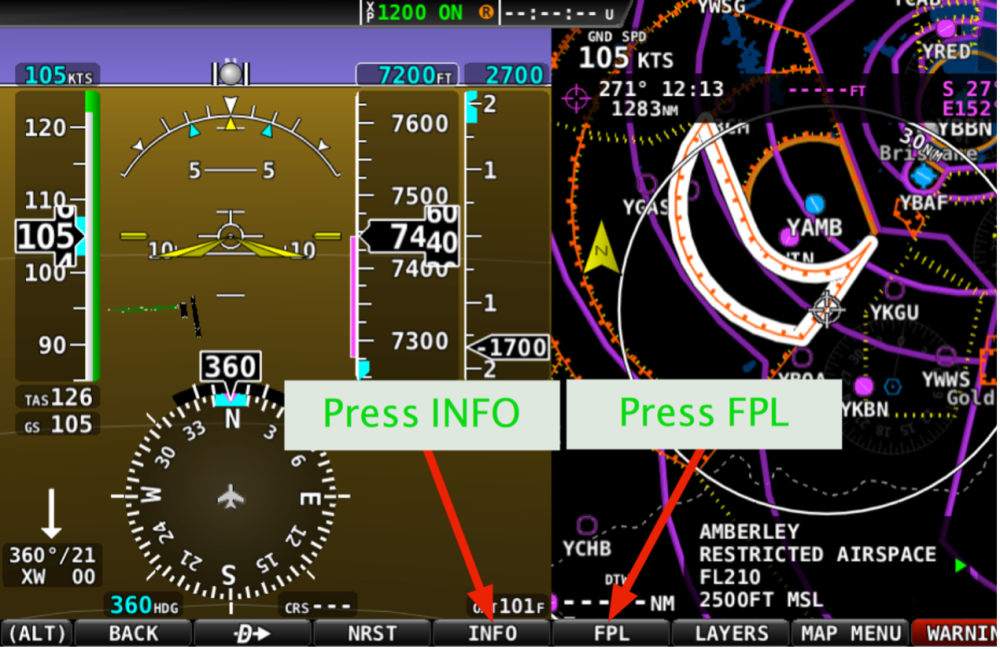

Flight plan and information controls on a Dynon SkyView map display — Navigation-point information controls

Use the joystick dial to move from RECENT to CHARTS.
Select the required chart from the list for the aerodrome.

Dynon SkyView

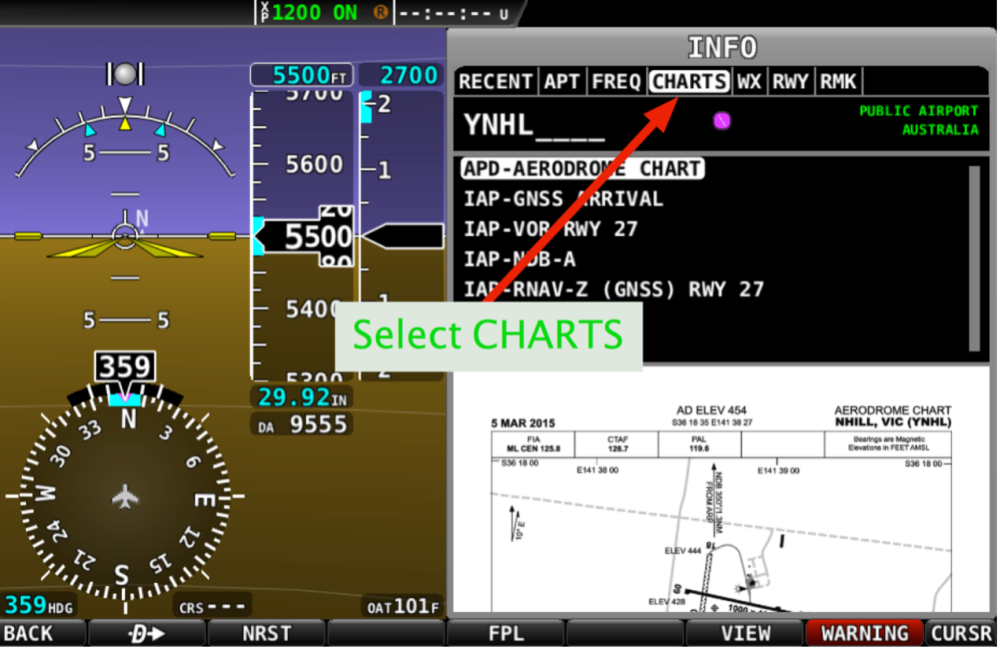

Aerodrome charts listed in the Dynon SkyView information pane — Available aerodrome charts

To replace the VFR map with the selected chart, press VIEW.

Dynon SkyView

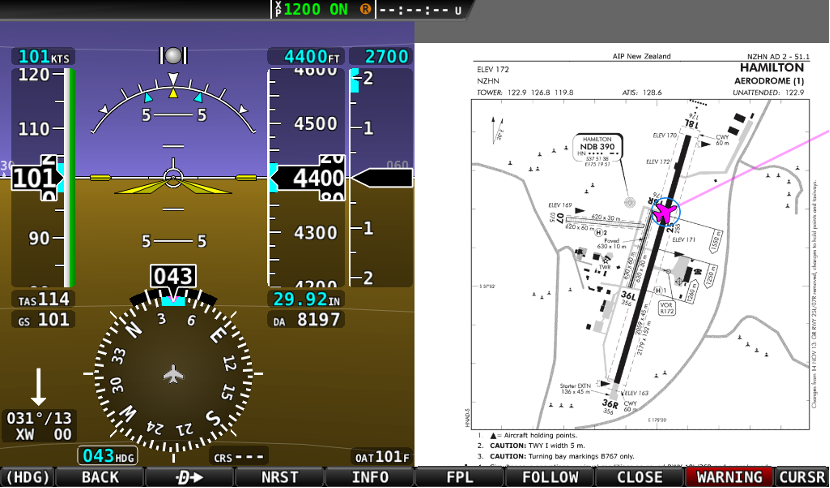

Aerodrome chart displayed in the Dynon SkyView map pane — Chart displayed in the map pane

When SkyView has a current aircraft position at the displayed aerodrome, it shows the aircraft position on the chart.
