4.1 Display AvSoft maps
Button positions can vary between SkyView models. Use the equivalent control on your display. The SkyView Classic examples use Australian FIR charts.
INFO
Map names can change between data releases, FIRs and map-generation software versions. If the usual map name is absent, review the available layers for the renamed map.
Display a map on SkyView Classic

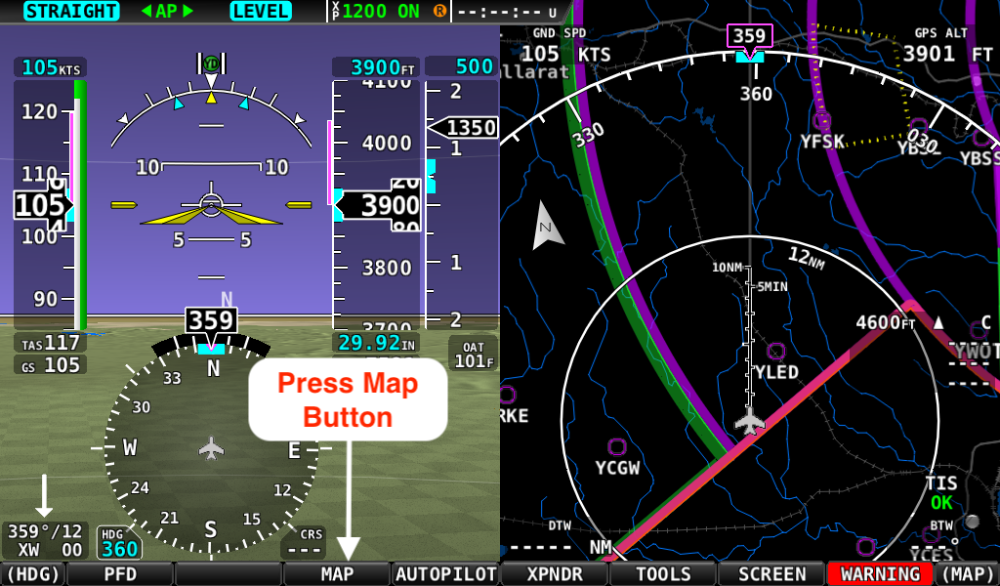

- From the main display, press MAP.
Dynon SkyView Classic

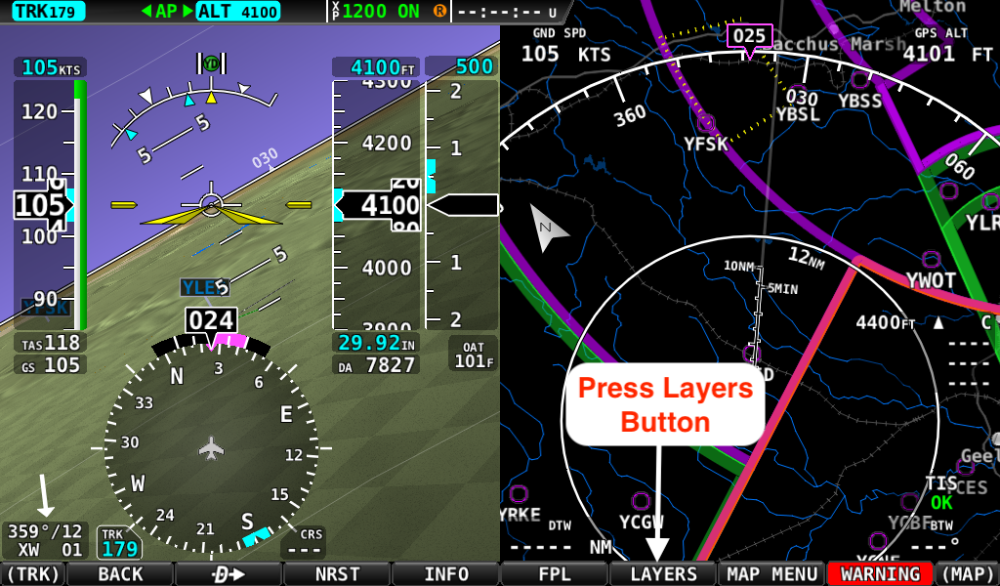

- Press LAYERS.
Dynon SkyView Classic

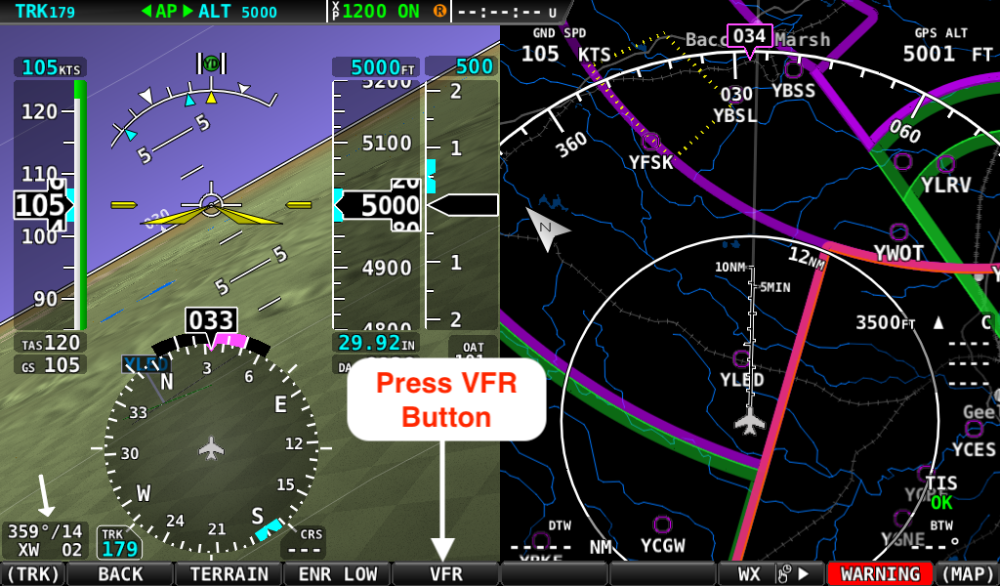

- Press VFR to select the AvSoft VFR map.
Dynon SkyView Classic

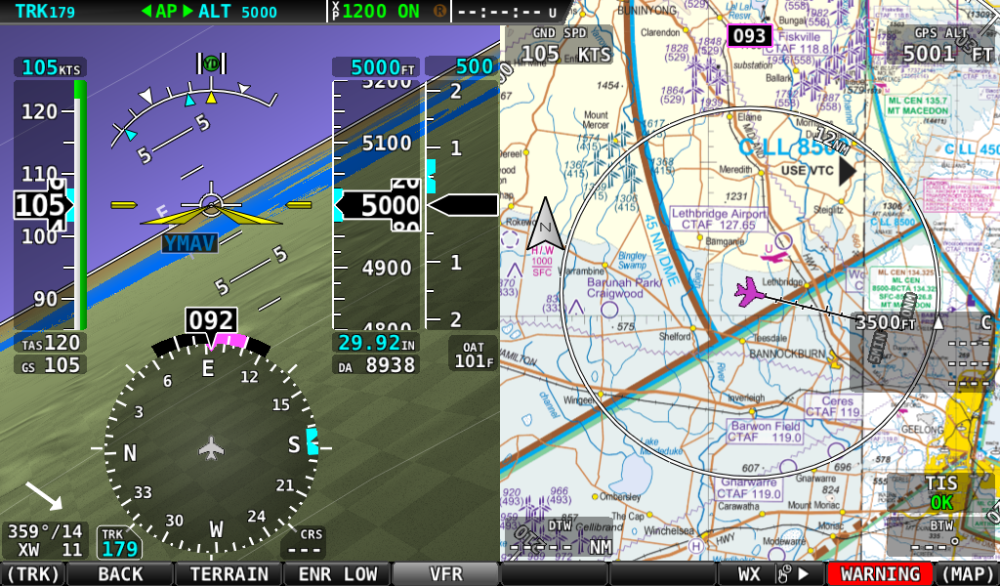

The map display updates with the selected VFR base map beneath the aircraft, airspace and other SkyView information.
Dynon SkyView Classic
Display a map on SkyView HDX

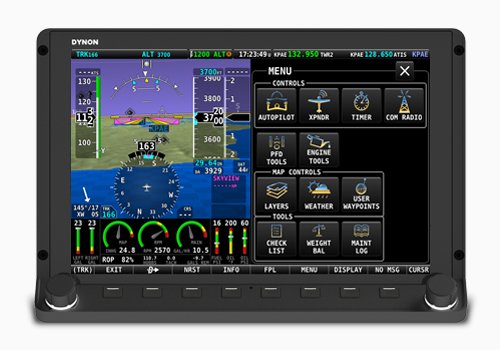

- Tap Menu.
- Under Map Controls, tap Layers.
- Select the required AvSoft map layer.
Dynon SkyView HDX
