9.6 Flight logs
Review recorded flight tracks, profiles, events and available aircraft or device data.
Open flight logs

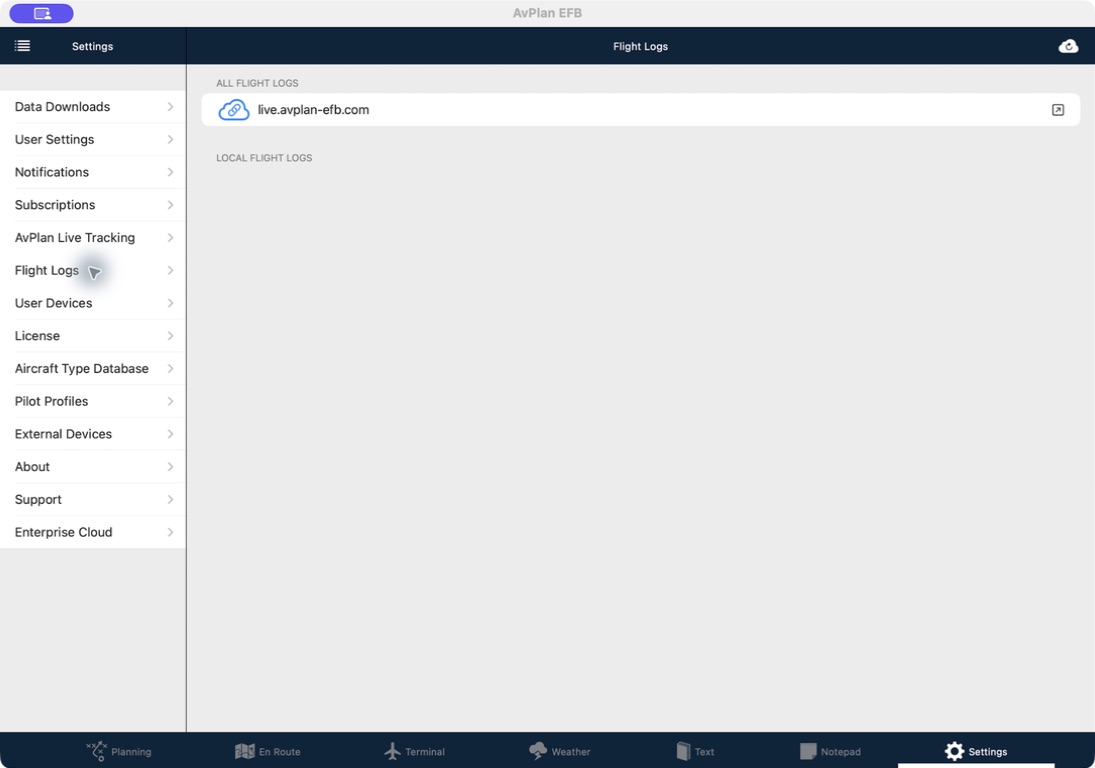

Apple 10.x
- Open Settings > Flight Logs.
- Select a local flight log when one is listed under Local Flight Logs.
- Select live.avplan-efb.com under All Flight Logs to open logs stored with AvPlan Live.
Apple
AvPlan Live can retain logs for plans that are no longer stored on the device.
Review a recorded flight
Apple 10.x

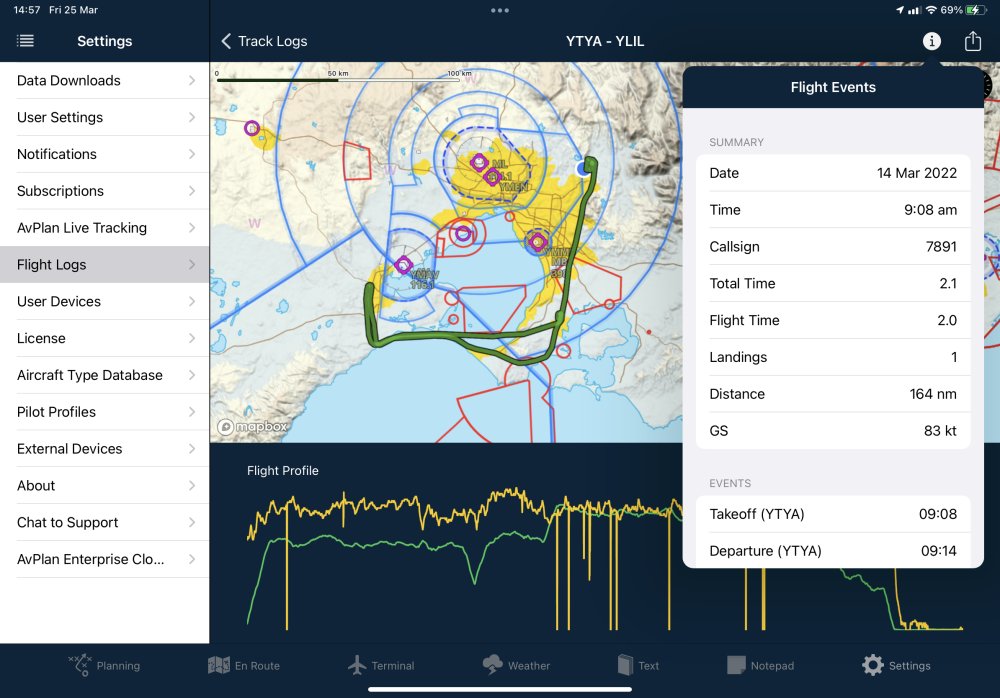

Open a log to review the recorded track, vertical profile, speed profile and flight events. Select the information control to review the available summary, which can include:
- date and callsign
- total and airborne time
- landing count and distance flown
- average groundspeed
- take-off, departure, landing and on-block times and locations.
Apple 10.x can also include G-load, network-coverage, day/night and turbulence information when that data was recorded for the flight.
Share or export a flight log
Open the flight log and select Share. Choose an AvPlan Live link or one of the available export formats.
