2.1 Manage saved flight plans

Manage saved flight plans

Android Apple Web

The flight plan index lists saved plans and key details such as route or custom name, callsign, flight rules, distance and planned times.

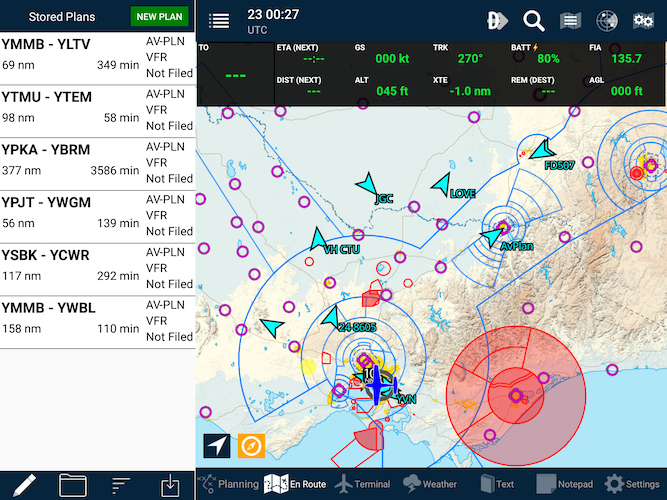

Android

Saved flight plans

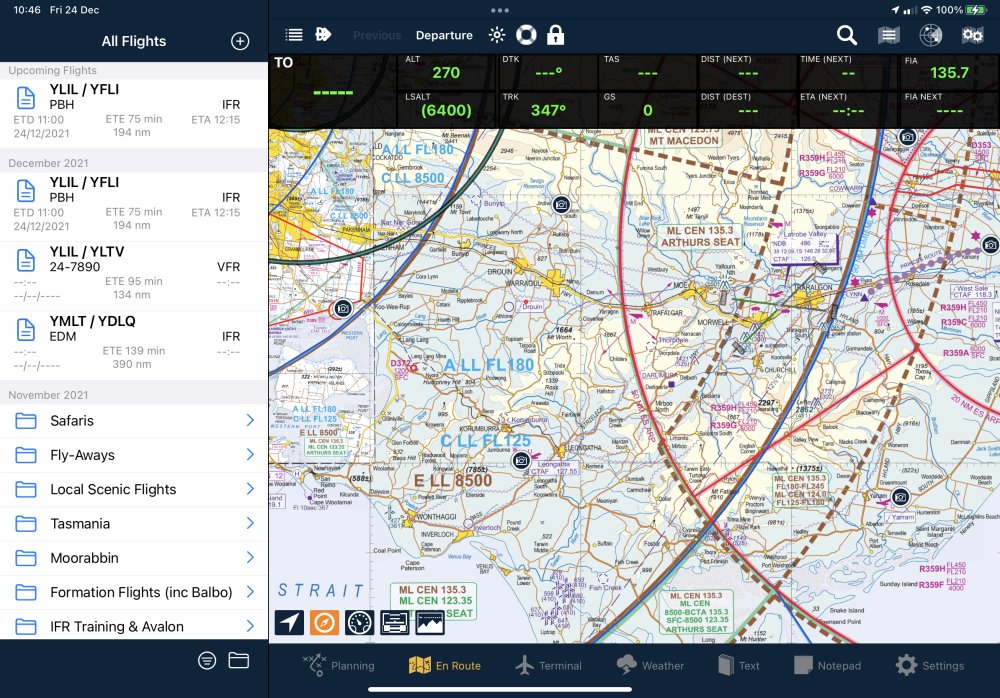

Apple

Saved flight plans

Select a plan to open it. A plan stored in AvPlan Cloud but not on the current device downloads when selected.

WARNING

An internet connection is required to synchronise or download a flight plan.

Android

Plans stored on the device use black text. Plans available only from AvPlan Cloud use grey text.

The submission status can be Not Filed, Filed OK or File Failed.

Apple

Change the plan order

1. Select Plan Order.
2. Select Date to show the newest plans first, or Custom to use a manually arranged order.

Date order groups plans by month and year. Plans with a future ETD appear under Upcoming Flights. In custom order, touch and hold a plan or folder, then drag it to the required position.

Create a folder

1. From All Flights, select Folder.
2. Enter a folder name.
3. Select Add.

Folders can contain plans, other folders or both.

Identify local and cloud plans

Location	Icon	Meaning
Local Flight Plans		Stored on the current device.
Other Flight Plans		Stored in AvPlan Cloud but not on the current device.

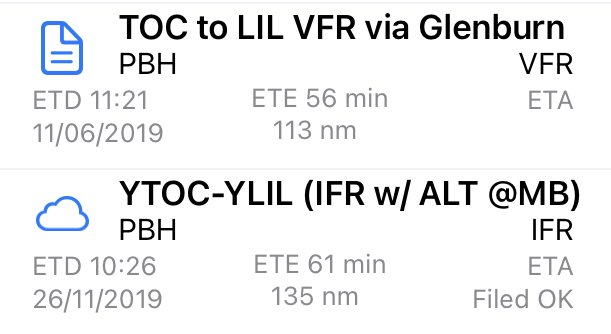

Read a plan summary

A summary can contain:

• departure and arrival points, or a custom name
• callsign, flight rules and aircraft callsign
• ETD, ETE and ETA when an ETD has been entered
• the created or last-modified date
• total distance
• Filed OK after successful submission.

When the plan is saved online, ETD and ETA use local time at the departure and destination and show their time zones. Otherwise, these times use UTC.

Web

The All Plans list shows saved plans, folders, aircraft, ETD, distance, ETE, flight rules, ETA, filing status and synchronisation status.

• Use Search to filter the visible plans.
• Select a plan row to open it.
• Select Flight Plans to return to the list.
• Select Add Folder to create a folder. Use the folder row to expand or collapse its plans.
• Select Select to enter multi-select mode. Use Select All, Cancel Select or Delete Selected as required.
• Not synced means a plan has not yet been published to linked devices. Open the plan and select Sync to publish it. The plan editor does not show a separate device-status tag for a saved, unpublished plan.

WARNING

Check the selected plans carefully before selecting Delete Selected.

Import a shared flight plan template

Web

Enterprise group members can import a shared template as a new personal flight plan.

1. Open Planning > Flight Plans.
2. At the bottom of the Flight Plans panel, select Import plan (the file-import button).
3. Open the required shared folder, then select the template.
4. Wait for Template imported. The imported plan opens in the plan editor.
5. Review and update the route, aircraft, ETD, loading, fuel and other operational details before using or filing the plan.

INFO

Import plan is available to enterprise members. If no template is listed, ask a group administrator to share one under Enterprise Accounts > the required account > Flight Plans.

WARNING

A shared template is a starting point. Confirm every imported value is suitable and current for the intended flight.

Opening, Closing and saving plans

Android Apple

Open, save and close flight plans

Open a saved plan by selecting it in the flight plan index. Closing a plan returns it to the saved-plans list and retains its associated data, including track logs and recorded times.

Android

Use either of these methods to close the plan.

Flight plan pane

1. Select Back at the top-left of the flight plan pane.
2. Select Yes when asked whether to close the plan.

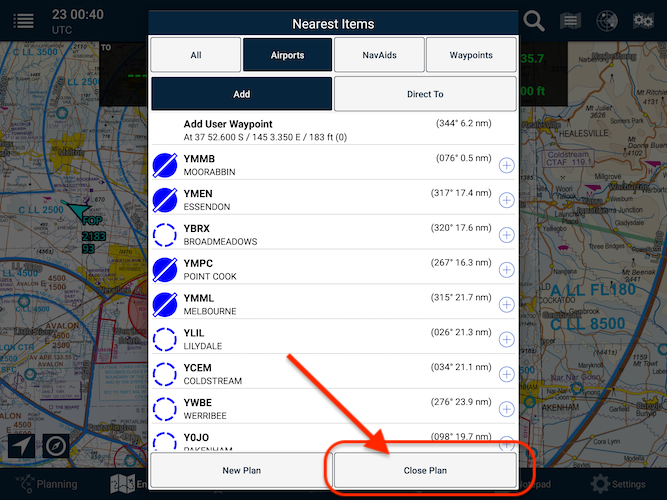

Nearest items

Essentials subscribers must use this method.

1. In En Route, select the map to open Nearest Items.
2. Select Close Plan at the end of the list.

Close plan using Nearest Items

Apple

1. Select Back at the top-left of the flight plan pane.
2. Select Save Changes to retain edits, or Discard Changes to close without them.

When Sync Flight Plans is enabled under Settings > User Settings, closing a plan also syncs it to AvPlan Cloud if the device is online.

Syncing flight plans

Android Apple

Sync flight plans

Flight plans can be synchronised between Android and Apple devices signed in to the same AvPlan account.

1. On every device, open Settings > User Settings and enable Sync Flight Plans.
2. Sign in to the same AvPlan account on every device.
3. Close a plan to upload it automatically, or select Send/Share > Sync Plan via Cloud to start a manual sync.

Android and Apple

Android and Apple

Send and Share

See Open, save and close flight plans for the automatic upload behaviour.

INFO

An internet connection is required to synchronise a flight plan.

Review cloud-only and updated plans

Apple

Flight plans with a cloud icon are stored in AvPlan Cloud but are not present on the current device. Select a plan to download it.

Apple

Apple

If the same plan is open on two linked devices and one copy changes, the other device displays Updated Flightplan Available. Select Import to apply the changes or Cancel to keep the open copy.

INFO

To reduce repeated update prompts on an Apple device while a published plan is being edited in AvPlan Web, enable Pause device sync while editing under Settings > Preferences > Planning in AvPlan Web. See Reduce device update prompts while editing.

Delete, rename, copy or move a plan

Android Apple

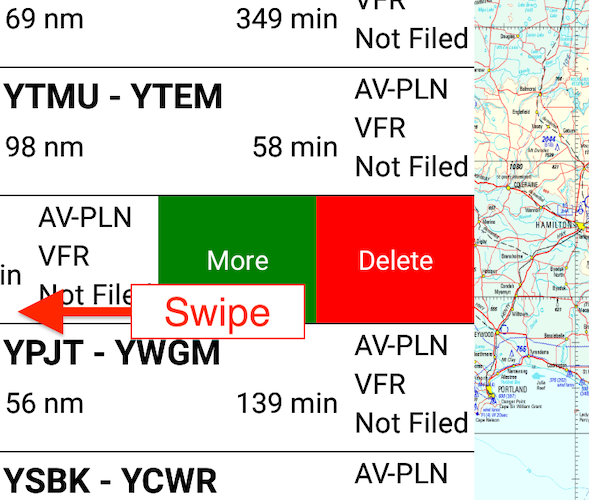

Delete a flight plan

Swipe the saved plan from right to left, then select Delete.

Android

Actions for a saved flight plan

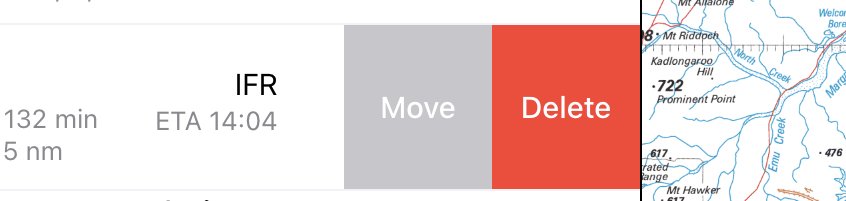

Apple

Actions for a saved flight plan

WARNING

Deleting a plan also deletes track logs stored against that plan.

Rename a flight plan

Apple

Enter the required name in Flight Plan Description at the end of the plan.

Apple

Apple

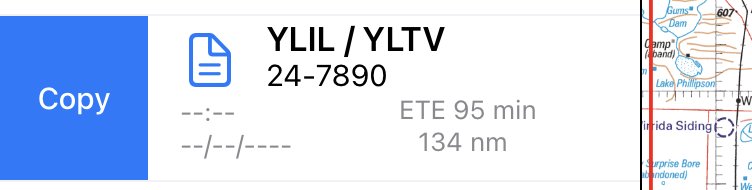

Copy a flight plan

Apple

1. Swipe the plan from left to right.
2. Select Copy.

Apple

Apple

Move a flight plan

Apple

1. Swipe the plan from right to left.
2. Select Move.
3. Select the destination folder.

INFO

Changes to a synchronised plan are also applied on other signed-in devices.
