9.5 AvPlan Live tracking
Configure AvPlan Live tracking
AvPlan Live is included with all subscription levels and requires an internet connection. It can display other AvPlan traffic on the En Route map, share your position and publish flight progress through a browser link.

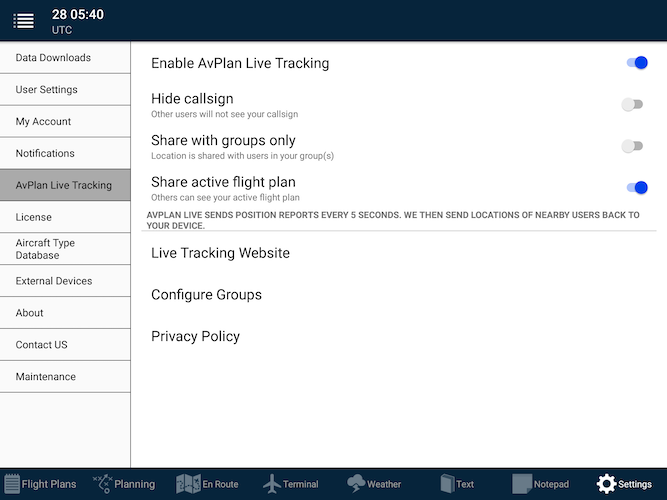

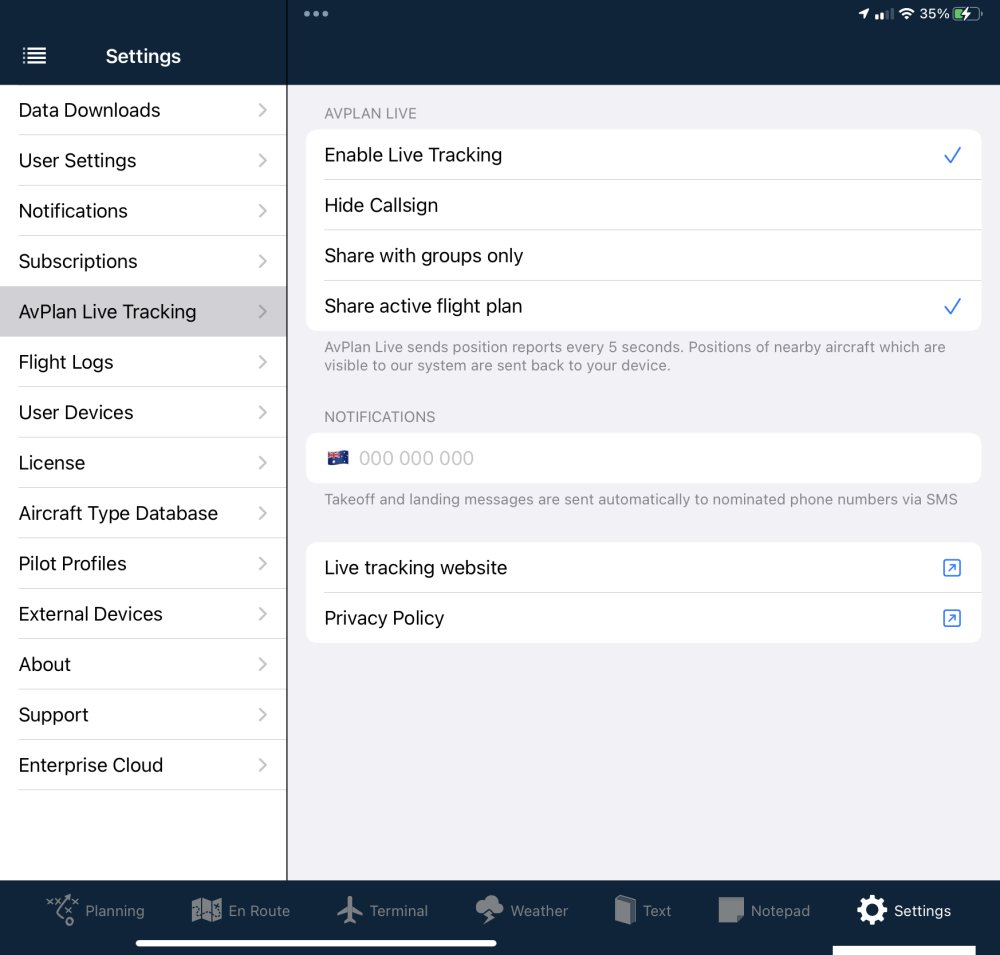

- Open Settings > AvPlan Live.
- Turn on Enable AvPlan Live Tracking.
- Turn on Hide Callsign if other AvPlan users should not see the aircraft callsign.
- Turn off Share active flight plan if only the current position, height and groundspeed should be shared.
- Open the AvPlan Live website when you need to create or send a tracking link.
INFO
Enable AvPlan Live Tracking must be turned on before AvPlan traffic can appear on the map.
Share live flight progress
Create a personal public link so family and friends can follow positions shared by your AvPlan devices.
- Sign in to AvPlan Web.
- Select Settings > Account.
- Select Flight Sharing.
- If there is no active link, select You have no active sharing link. Click to generate one!
- Under Share Link Options, choose what the public view should include. Available options include Include weather radar, Include SIGMET overlays, Include all traffic, Use nicknames when available and Hide departure board.
- Select the clipboard button to copy the link, then send it to the people who need it.
Select Delete Link to revoke the active public link.
WARNING
The shared view updates only while a device is sending AvPlan Live data over an internet connection. A gap in tracking data does not by itself indicate an emergency.
See Manage flight sharing for the complete set of link and map options.
Configure take-off and landing notifications
Add up to two phone numbers under Notifications to send SMS messages when AvPlan detects a take-off or landing in Fly mode. On iPhone, tap Done after entering a number. Swipe a saved number to the left and tap Delete to remove it.
Open AvPlan Live on the Web
- Open Settings > AvPlan Live.
- Select AvPlan Live Website.
- Sign in with the same AvPlan account used in the app.

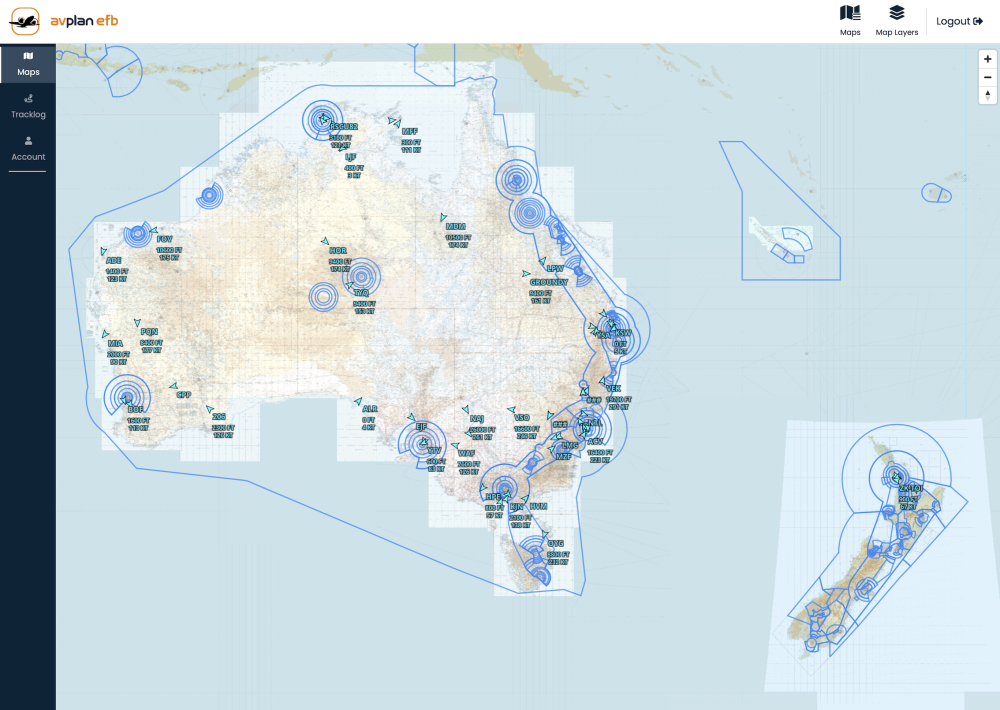

The website can show maps, live traffic, track logs, account details and available group functions.
Apple

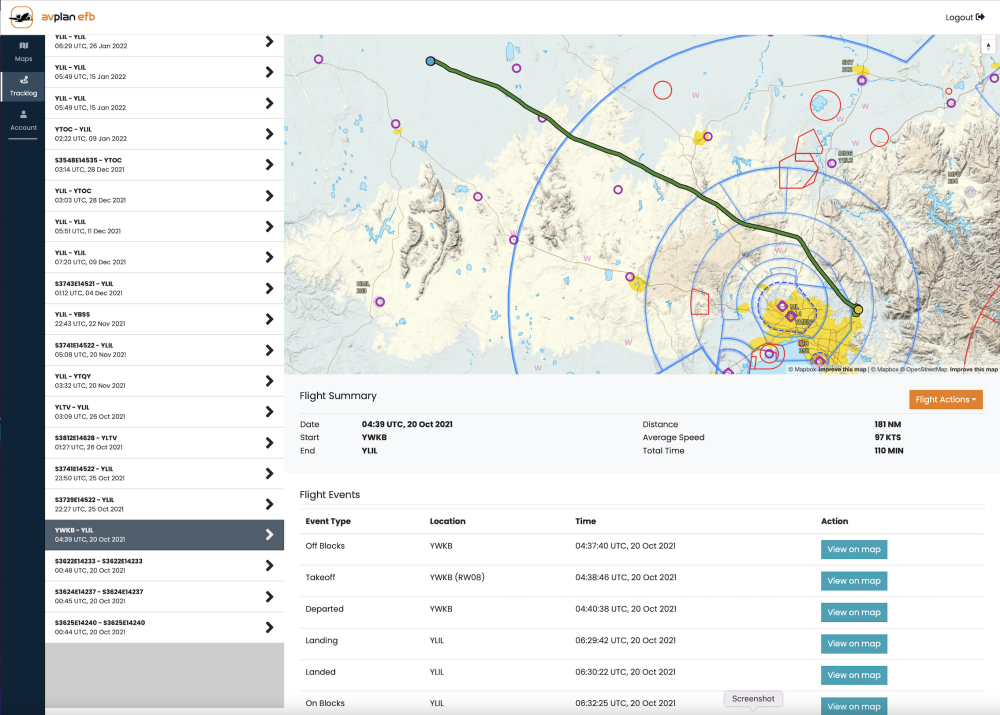

Review a track log
- Open Track Logs.
- Select a flight to display it on the map.
- Use the available controls to review recorded events such as off blocks, take-off, departure, landing and on blocks.
Apple
Export a track log

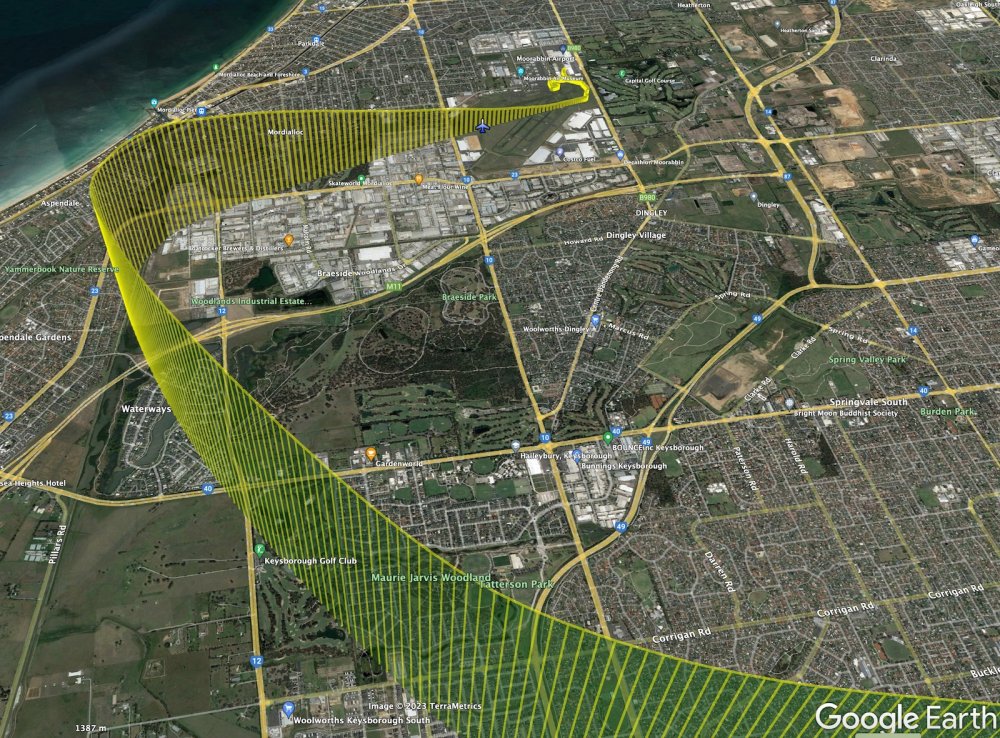

Open the required track log, then export it as GPX, KML or CSV. A KML file can be opened in compatible mapping software such as Google Earth.
INFO
Track-log positions and altitudes come from the location source used by the device during the flight. Allow for the accuracy limits of that source when reviewing the log.
Apple
Manage account and group functions
Under Account, review subscriptions, registered cards and signed-in devices, or open Flight Sharing to manage the personal public link. See Manage devices and Manage flight sharing.
Groups appears when the account belongs to a group. Available administration controls depend on the assigned role.
